Benefits

1.Easy Installation.
The innovative Wanhos solar rail and D-modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kits. Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.

2.Great Flexbilitity.
The Wanhos solar mounting system has mounting accessories designed for use on almost every roof and ground with excellent compatibility.Designed as a universal racking system,framed modules from all the popular manufacturers can be used.

3.High Accuracy.
Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.

4.Maximum Lifespan:
All components are made of quality extruded aluminium, C-steel and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.

5.Guaranteed Durability:
Wanhos Solar provides a guarantee of 10 years on the durability of all components used.

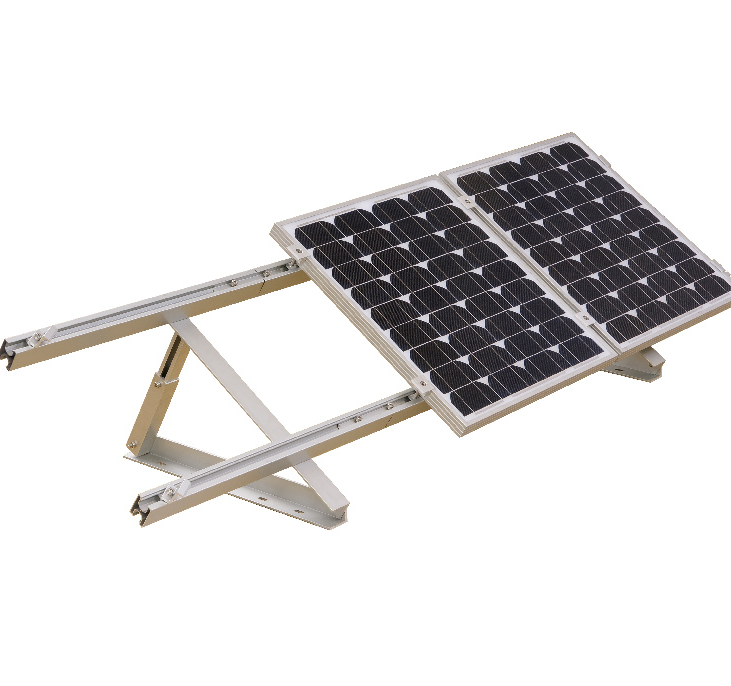

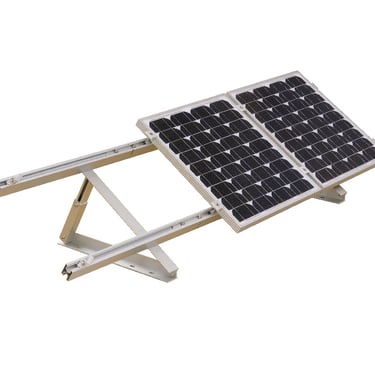

• Item: Adjustable Delta triangle mounting

• Application: Flat roof, open terrain

• Tilt angle: 10-15deg, 15-30deg, 30-45deg

• Building height: Up to 20m

• Snow load: Up to 100cm

• Wind speed: Up to 80m/s

• Module type: Framed, unframed

• Module orientation: Landscape, portrait

• Material: Anodized aluminum 6005 T5, stainless steel 304, 410

• Standard: AS/NZS1170.2:2011 (R2016), JIS C 8955:2017

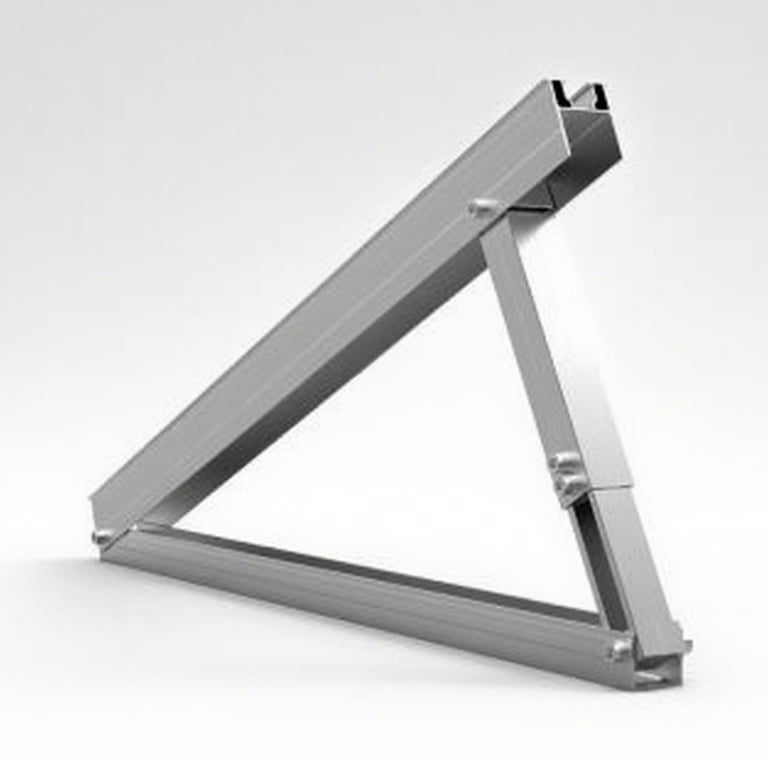

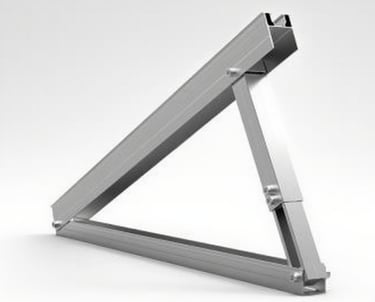

Adjustable Delta triangle mounting bracket is more versatile than traditional ballast mount on flat roof installation. It can be installed on roof clamp or penetrate into concrete base, metal sheet, or using concrete as ballast. Fold-up design allows for easy transportation, cost-effective warehousing and easy mounting.

Adjustable function is by telescopic rear leg, which share with Solaracks’ another flat roof mounting system, Telescopic.

There are three adjustable scope optional

10-15deg

15-30deg

30-45deg
