Solar Tracker vs Fixed Tilt: Performance Comparison Guide (2026)

Engineering Performance Overview

Determining the optimal structural architecture for a multi-megawatt solar facility requires moving beyond simple hardware price comparisons and executing a rigorous, data-driven performance analysis. The fundamental engineering question is: which mounting system delivers the most bankable long-term energy performance under defined environmental constraints? The performance data is absolute. Active solar tracking systems consistently generate a massive +15% to 30% increase in annual energy yield by maintaining an optimal angle of incidence with the sun, drastically flattening the power curve during morning and evening hours. This makes them the definitive choice for utility-scale LCOE (Levelized Cost of Energy) optimization in high-irradiance zones.

Conversely, fixed tilt mounting systems trade maximum energy generation for absolute structural stability and mechanical certainty. By eliminating all electromechanical components and moving parts, fixed structures offer a vastly lower risk profile, zero mechanical downtime, and immunity to software-driven stow failures. Because trackers introduce immense operational complexity and maintenance overhead, they are rarely appropriate for small-to-medium portfolios. To establish a baseline for your specific project constraints, developers must consult the solar mounting comparison hub to weigh absolute generation metrics against localized geotechnical and climatic risks.

Quick Performance Recommendation

Tracker vs Fixed – Technical Performance Comparison

The performance matrix clearly delineates the risk-reward profile of modern photovoltaic deployment. Trackers aggressively harvest more photons, translating directly to higher project revenues, but they command a higher initial capital expenditure and demand ongoing mechanical maintenance. Fixed-tilt frameworks establish the performance baseline—predictable, unwavering, and mathematically certain—making them the backbone of deployments where site access is difficult, terrain is complex, or absolute operational reliability supersedes maximum theoretical output.

What Is a Solar Tracking System?

Technical Definition

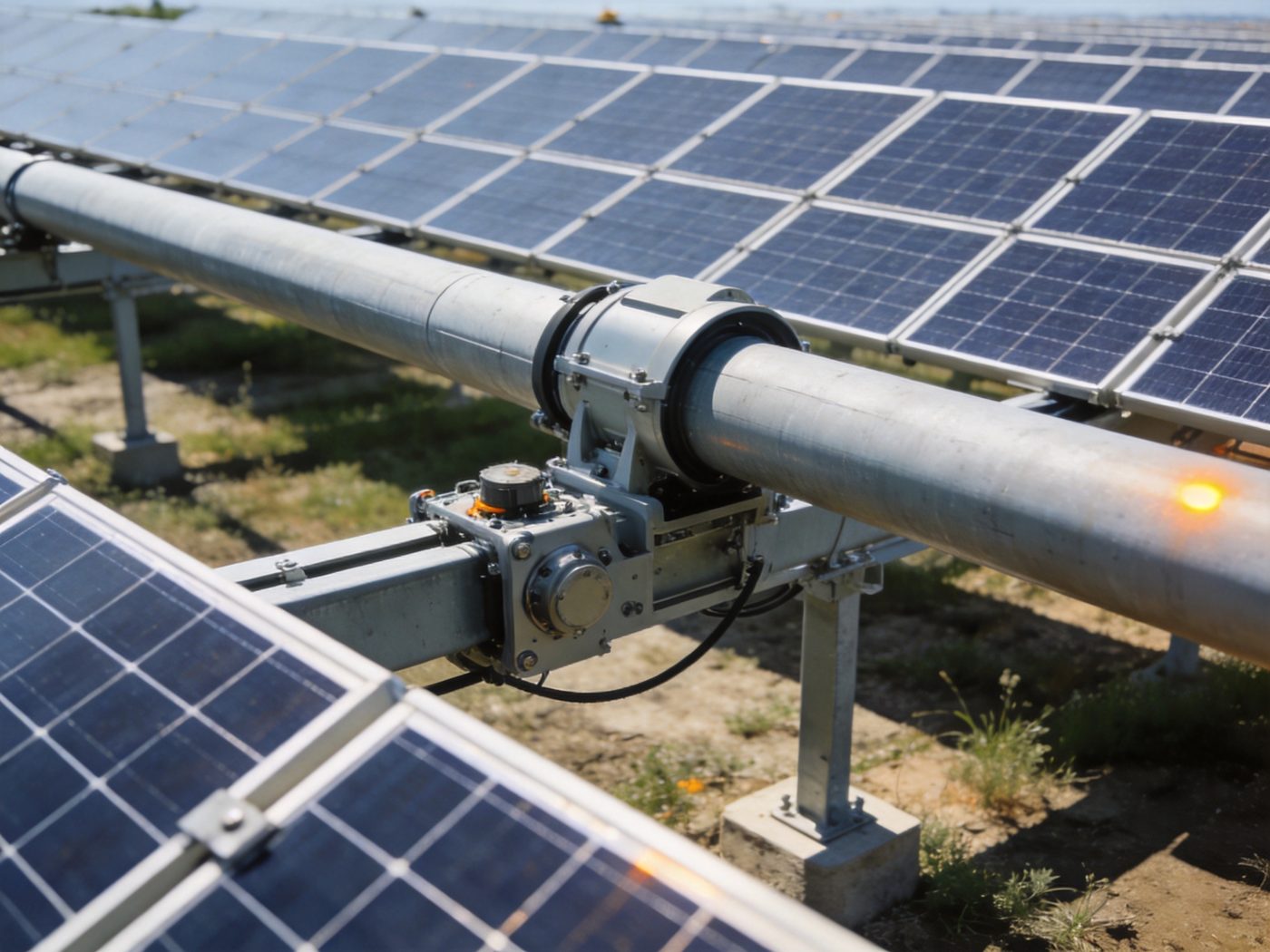

A solar tracking system is an active, dynamic structural asset engineered to physically orient photovoltaic modules toward the sun as it moves across the sky. By minimizing the angle of incidence (the angle between the sun’s rays and the module surface), trackers maximize Direct Normal Irradiance (DNI) absorption. This dynamic movement significantly reduces optical reflection losses (cosine losses) that plague static arrays during the early morning and late afternoon.

Structural Characteristics

The vast majority of modern trackers utilize a single-axis, horizontal row architecture. These single axis tracking structures consist of a massive, continuous steel torque tube supported by articulating bearings. A decentralized motor drive or centralized mechanical linkage slowly rotates the entire 300-foot row. The system’s intelligence relies on a sophisticated control algorithm that calculates the astronomical solar position and utilizes integrated weather stations to execute protective maneuvers. Because the rotating array acts as an aerodynamic sail, strict wind load calculation protocols must be integrated into the software, forcing the tracker into a horizontal “stow” position before wind speeds exceed critical failure thresholds.

Typical Applications

Due to the massive economies of scale required to amortize the cost of motors, controllers, and specialized commissioning labor, trackers are the exclusive standard for modern utility-scale solar projects (typically 50MW and larger). They are deployed across vast, relatively flat geographies in regions boasting high levels of direct sunlight.

Advantages

The performance advantage is profound: a massive increase in total generated kilowatt-hours. Crucially, trackers produce a “fat” power curve. Instead of a sharp spike at solar noon (typical of fixed systems), a tracker ramps up to near-peak power early in the morning and sustains it until sunset. This extended generation window aligns perfectly with utility peak-demand pricing, drastically boosting the financial value of the energy sold.

Limitations

Trackers suffer from high mechanical vulnerability. The introduction of moving parts guarantees an increased failure rate over a 25-year lifecycle. Furthermore, to prevent adjacent rotating rows from casting shadows on one another during the early morning or late evening, trackers must be spaced further apart. This results in a lower Ground Coverage Ratio (GCR), requiring significantly more land acreage per megawatt than a densely packed fixed-tilt system.

[image:4]

What Is a Fixed Tilt Solar Mounting System?

Technical Definition

A fixed-tilt solar mounting system is a stationary structural framework that holds solar modules at a permanent, unchanging angle and orientation. Because it lacks the ability to physically track the sun, its energy performance is entirely reliant on achieving the best possible geometric compromise between the sun’s high summer trajectory and its low winter arc.

Structural Characteristics

The architecture of a fixed tilt solar mounting system is defined by rigid stability. Heavy-gauge galvanized steel posts are driven into the earth, supporting static cross-beams and rails. There are zero articulating joints, zero drive motors, and no software dependencies. The most critical performance variable is determined during the design phase through rigorous tilt angle optimization. Engineers typically set the panel tilt angle equal to (or slightly lower than) the site’s latitude to maximize the total annual energy harvest, though this angle can be manipulated to prioritize winter or summer generation based on specific PPA structures.

Typical Applications

Fixed-tilt systems dominate the commercial solar mounting sector, industrial deployments, and distributed generation portfolios (1MW to 20MW). They are also the mandatory engineering choice for projects built on highly irregular, undulating terrain, capped landfills, or in extreme northern latitudes where the diffuse, cloudy light renders sun-tracking economically useless.

Advantages

The primary performance advantage of a fixed system is absolute operational certainty. By eliminating all electromechanical components, the system achieves near 100% mechanical availability. It never suffers from software glitches, motor burnouts, or stuck bearings. Furthermore, because fixed panels do not rotate, they can be packed tightly together, achieving a massive Ground Coverage Ratio (GCR) that maximizes the energy density of small, expensive parcels of land.

Limitations

The critical limitation is energy clipping. A fixed-tilt array only faces the sun directly for a brief period at solar noon. During the rest of the day, a high percentage of incoming sunlight glances off the module glass (cosine loss), leaving up to 30% of the site’s potential energy harvest uncaptured. This sharp, narrow power curve is less valuable to grid operators during morning and evening demand peaks.

[image:4]

Cost Engineering Analysis

Performance engineering must always be reconciled with financial modeling. The superior energy yield of a tracking system is only valuable if the revenue generated mathematically outpaces the massive initial capital injection and the compounding lifecycle maintenance costs.

Initial Material Cost

The upfront bill of materials diverges sharply. A fixed-tilt system relies on highly commoditized, heavy-tonnage structural steel. A tracking system may use slightly less raw steel, but it introduces highly expensive, proprietary electromechanical hardware: slewing drives, articulating polymer bearings, programmable logic controllers (PLCs), and localized anemometers. To accurately quantify this pricing premium, developers must isolate the hardware components within a detailed solar mounting material cost breakdown.

Foundation Cost Impact

Tracker foundations demand absolute geometric perfection. Because a 300-foot torque tube acts as a massive lever, any subterranean foundation settlement will immediately bind the driveline and destroy the motor. Consequently, trackers require significantly heavier, deeper pile driven foundation systems to guarantee absolute rigidity. Fixed-tilt systems, possessing multiple redundant load paths, can tolerate minor foundation shifts and utilize cheaper, shallower pile profiles.

Labor & Equipment Cost

Fixed-tilt installation is a rapid, brute-force mechanical exercise. Tracker installation is slower and highly specialized. Once the steel is erected, certified electromechanical technicians must wire the mesh control networks, calibrate the tracking algorithms, and meticulously align the bearings using laser surveying equipment, drastically inflating the blended hourly labor rate.

Transportation & Logistics

Fixed-tilt C-channels stack densely, optimizing global oceanic freight. Tracker components, particularly pre-assembled slewing gearboxes and sensitive electronic control panels, are bulky and require specialized, climate-controlled transit and secure on-site laydown yards, increasing logistical overhead.

25-Year Lifecycle Cost & LCOE Analysis

Over a 25-year operational horizon, the financial models intersect. The tracker’s high upfront CAPEX and required OPEX budget (for motor replacements and lubrication) are systematically offset by the +20% daily revenue boost. In a rigorous lifecycle cost and ROI analysis, trackers deployed in high-irradiance zones consistently achieve a lower (better) LCOE, making them the most profitable long-term asset class despite their structural complexity.

Structural Performance & Yield Comparison

Energy yield and structural resilience are deeply interconnected. A system that optimizes yield but cannot survive local climatic extremes will ultimately deliver a negative ROI.

Annual Energy Gain by Latitude

The performance gain of a tracker is heavily dictated by geography. In equatorial and sun-belt regions (e.g., US Southwest, Middle East, Australia), high Direct Normal Irradiance (DNI) allows single-axis trackers to achieve massive +20% to 30% yield gains over fixed-tilt systems. However, as projects move into high-latitude northern regions (e.g., Northern Europe, Canada), the sunlight becomes highly diffuse due to cloud cover. Trackers cannot track “diffuse” light effectively. In these regions, the performance delta shrinks to +8% to +12%, frequently failing to justify the mechanical cost premium.

Wind Load Resistance

Fixed-tilt systems combat wind through sheer, unwavering rigidity, engineered to withstand boundary-layer winds continuously without intervention. Trackers employ an active avoidance strategy. To comply with rigorous wind load standards, trackers utilize integrated weather stations that trigger a protective “stow” mode. If the wind spikes, the array rotates to a 0-degree horizontal position to minimize aerodynamic drag. While highly effective, if the grid loses power or a motor faults before the stow is completed, the tracker is highly vulnerable to catastrophic torsional destruction.

Snow Load Capacity

Trackers possess a distinct operational advantage in heavy snow environments: active snow shedding. Advanced tracking algorithms can command the panels to rotate to a steep 60-degree angle during a blizzard, actively dumping accumulated snow and instantly clearing the modules for power generation. Fixed-tilt systems rely entirely on their static angle; if the pitch is too shallow, heavy snow will accumulate, suppressing generation for days and placing immense dead-weight stress on the steel purlins.

Seismic Stability

Fixed-tilt structures inherently possess high ductility. The multi-post framework can absorb and distribute lateral seismic shear waves without collapsing. Trackers concentrate massive weight and rotational forces onto single-post torque tubes. Severe seismic vibration can violently whip the array, shattering the precision gears inside the slewing drives if specialized structural dampeners are not incorporated.

Terrain Adaptability

Fixed-tilt arrays conform to the earth. With highly articulating joints, they can seamlessly cascade over undulating hills, steep slopes, and complex topographies. Single-axis trackers demand perfection. The long, continuous torque tubes must remain perfectly aligned; deploying them on rolling terrain requires massive, environmentally destructive land grading operations, severely inflating civil costs.

Installation & Construction Complexity

Site Preparation Requirements

A fixed-tilt array forgives minor topographic variations, requiring only basic clearing and grubbing. Tracker sites demand laser-precision grading. To prevent the massive torque tubes from binding, the terrain must be smoothed into vast, continuous planes, introducing massive heavy-machinery costs and extending the civil engineering schedule.

Foundation Requirements

Both architectures utilize standard pile-driving techniques. However, tracker foundations have zero tolerance for refusal or deflection. If a pile hits subterranean rock and deviates by two degrees, a fixed-tilt bracket can adjust to absorb the error. A tracker bearing cannot. This mandates rigorous, expensive pre-drilling and concrete embedment in rocky soils to guarantee perfect linear alignment.

Required Machinery

Alongside standard pile drivers, tracker installations require specialized all-terrain telehandlers to carefully hoist the 30-foot sections of high-yield torque tubes into position without bending them.

Installation Timeline

Fixed-tilt teams execute highly repetitive, rapid mechanical assembly, bringing megawatts online quickly. Tracker timelines are fractured. Mechanical assembly must halt so surveyors can shoot lasers to verify bearing alignment, followed by a time-consuming electrical commissioning phase to program the motor controllers and network the weather stations.

Skill Level Required

Fixed mounts utilize general mechanical labor. Trackers require a hybrid workforce, relying heavily on certified electromechanical technicians and software engineers to bring the active tracking algorithms online and ensure the plant communicates flawlessly with the central SCADA system.

Long-Term Operational Impact

Maintenance Frequency

The financial viability of a tracker is tightly bound to its O&M execution. Fixed-tilt arrays are virtually maintenance-free. Trackers require an industrialized maintenance program. Technicians must conduct continuous structural integrity assessments, re-greasing slew gears, testing backup batteries for the stow mechanism, and validating the software telemetry to ensure the arrays are tracking accurately.

Component Replacement Cycle

A fixed-tilt structure will easily outlast its 25-year warranty without a single component replacement. Asset managers deploying trackers must actively budget for the mid-life replacement of electromechanical actuators, drive motors, and localized control boards (typically between years 10 and 15). Failing to budget for this hardware lifecycle will devastate the project’s late-stage ROI.

Degradation Risk

Trackers introduce kinetic degradation. Because the array is in constant motion and frequently subjected to aerodynamic flutter before stowing, the micro-vibrations can induce micro-cracking in the silicon solar cells over time. This dynamic stress degrades the module’s electrical output slightly faster than a perfectly static fixed-tilt array.

25-Year Yield Projection

Despite the mechanical risks and replacement cycles, a single-axis tracker in an optimized climate will yield tens of millions of additional kilowatt-hours over 25 years. This massive compounded revenue stream fundamentally defines the utility-scale solar market, making trackers the most performant structural asset in the industry.

Performance-Based Decision Matrix

Aligning theoretical energy yield with real-world geographical constraints is the core of structural procurement. The matrix below dictates the optimal engineering selection based on specific project profiles.

This decision matrix prevents developers from chasing theoretical maximum yields in hostile environments where the mechanical reality of the site will inevitably destroy the operational budget.

Engineering Decision Flowchart

For rapid performance-based procurement, apply the following triage logic:

Step 1: Yield Requirement vs Scale. Do you require a >15% yield increase to meet strict PPA rates, AND is the project scale massive enough (>20MW) to absorb high O&M costs?
→ Yes → Proceed to evaluate Tracker viability.
→ No (Project is <5MW) → Fixed Tilt is mathematically optimal; tracker OPEX will consume your margins.

Step 2: Climatic Vulnerability. Is the project located in a severe hurricane zone or a region with extreme, prolonged freezing?
→ Yes → Fixed Tilt is required for absolute stability. Relying on active stow strategies in extreme weather introduces unacceptable risk.
→ No (Benign climate, high DNI) → Single-Axis Tracker is the definitive choice.

Frequently Asked Engineering Questions

How much extra energy does a tracker actually generate?

Depending on the site’s latitude and Direct Normal Irradiance (DNI), a single-axis tracker will typically generate between 15% and 30% more total energy annually compared to an optimally positioned fixed-tilt system. The highest gains are observed in equatorial and sun-belt desert regions, while the lowest gains occur in cloudy, high-latitude environments.

Why do trackers have a lower Ground Coverage Ratio (GCR)?

Because trackers physically tilt from East to West, they cast long, sweeping shadows during the early morning and late afternoon. To prevent one row of modules from shading the adjacent row (which would instantly kill power production), the rows must be spaced significantly further apart. Therefore, a tracker site requires more total acres of land to install the exact same megawatt capacity as a tightly packed fixed-tilt site.

What is “backtracking” in a solar tracking system?

Backtracking is an advanced software algorithm designed to solve the shading issue mentioned above. During the very early morning or late evening, instead of pointing directly at the sun (which would cast a long shadow on the next row), the tracker intentionally flattens its angle slightly. This deliberately sacrifices a small amount of direct irradiance to entirely prevent row-to-row shading, optimizing the overall electrical output of the entire plant.

Does the power consumed by the tracker motors negate the energy gain?

No, the parasitic load is negligible. The drive motors operate incredibly slowly, moving only fractions of a degree every few minutes to track the sun. The total annual energy consumed by the tracking motors and control systems typically amounts to less than 0.5% of the total extra energy generated by the system, making the performance trade-off massively lucrative.

Are fixed-tilt systems completely immune to extreme weather?

Nothing is completely immune to extreme weather, but fixed-tilt systems are significantly safer. Because they are engineered as static, rigid trusses with multiple redundant foundation posts, they can be designed to withstand Category 5 hurricanes. Trackers, operating as massive sails on single posts, must rely on perfectly timed software commands to rotate into a safe position; if the software fails during a storm, the structure will be destroyed.

Can tracking systems be installed on standard commercial roofs?

No. The mechanical footprint, immense point-load weight, and dynamic kinetic forces generated by rotating torque tubes cannot be safely supported by standard commercial roof trusses. Tracking technology is almost exclusively restricted to ground-mounted, open-field deployment. Commercial roofs must utilize specialized, low-profile fixed-tilt or ballasted racking.
