Solar Installation Quality Control Guide (Standards, Testing & Compliance Checks)

Executive Summary

A rigorous Quality Control program eliminates the variance between the engineer’s design intent and the field crew’s actual execution. In utility-scale and commercial solar projects, deviations in pile depth, bolt torque, or rail alignment do not merely result in cosmetic flaws—they create severe structural vulnerabilities and critical safety hazards. Implementing a systematic QC framework protects the asset owner’s investment, satisfies stringent municipal compliance audits, and drastically reduces the financial burden of post-installation rework and warranty claims.

This guide details the methodology for establishing objective, measurable acceptance criteria before construction begins, enforcing hold-point inspections during assembly, and executing comprehensive commissioning tests prior to grid interconnection.

1. Scope & Applicability

The protocols established in this Quality Control guide apply universally to all solar installation projects, regardless of their scale or geographic location. However, the specific testing instruments, tolerance thresholds, and inspection frequencies must be adapted to match the mechanical complexity of the racking architecture being deployed. A robust QC program relies on clearly defined metrics: what is being measured, what tool is used to measure it, and what constitutes a pass or fail result.

1.1 Applicable Installation Types

Different systems present distinct QC challenges. Heavy civil works and geotechnical variance define the quality requirements during the
ground mount installation process, where pile plumbness and embedment depth are paramount. Alternatively, waterproofing integrity and rafter attachment precision dominate the
roof mount installation guide parameters. Finally, dynamic motion and control-system calibration require highly specialized mechanical tolerance audits during the
tracker installation process, where a single misaligned bearing can cause cascading drive-motor failures.

1.2 Key Quality Control Areas in Solar Installations

Comprehensive QC is divided into four primary disciplines. First, foundation checks verify that the structure is anchored to the earth with sufficient capacity to resist maximum calculated uplift and overturning moments. Second, structural integrity and module mounting audits ensure the steel and aluminum framing is square, level, and securely fastened. Third, grounding and electrical connections are tested to guarantee a continuous, low-impedance fault path. Fourth, system performance testing validates that the mechanical assembly correctly supports the electrical generation and tracking systems without physical interference.

1.3 Importance of Pre-Installation Checks

Quality control begins long before the first piece of steel is erected. Attempting to manage quality reactively during construction is both expensive and inefficient. Pre-installation checks ensure that the site layout exactly matches the engineered drawings, that underground utilities are correctly mapped and avoided, and that the staging areas are prepared to prevent material damage. Executing the initial
site preparation guidelines with precision sets the foundation for a defect-free installation sequence.

2. Pre-Installation Planning for Quality Control

Preventative quality control requires translating theoretical engineering limits into practical, field-verifiable checklists. The project management team must define specific “Hold Points”—stages of construction where work must pause until a designated QA/QC inspector verifies and signs off on the completed tasks. Proceeding past a hold point without authorization is a critical process failure.

2.1 Site and Soil Assessment for Stability

Geotechnical variability is the highest risk factor in ground-based solar projects. QC must verify that the soil conditions encountered in the field match the assumptions made in the geotechnical report. Pre-production pull-out and lateral load testing must be conducted to confirm the ultimate capacity of the specified piles. If the field tests fail to meet the engineered safety factors, the foundation design must be revised before mass production begins. For the parameters governing these foundational tests, review the
soil and geotechnical considerations.

2.2 Equipment & Material Inspection Before Installation

Upon delivery, all components must undergo a receiving inspection. QC personnel must verify the Bill of Materials (BOM) against the shipment, checking for transit damage, bent extrusions, or compromised galvanization. Fasteners must be audited to ensure the correct grade (e.g., Class 8.8 vs 10.9) and coating have been supplied. Installing substandard or damaged materials introduces immediate structural flaws. Validate incoming components against the specified
materials and structural design parameters before releasing them to the installation crews.

2.3 Environmental Considerations for Quality Control

Environmental conditions heavily influence installation quality. Concrete foundations poured in freezing temperatures will suffer from severely compromised compressive strength, while modules installed during high-wind events are highly susceptible to micro-cracking due to handling stress. The QC plan must include weather-based stop-work triggers. Site managers must constantly monitor these environmental thresholds, particularly aligning with
high wind installation safety protocols, to ensure work is only performed under safe and standard-compliant conditions.

3. Step-by-Step Installation Quality Control Procedures

The execution phase is where quality control transitions from planning to active measurement. Field inspectors must be equipped with the appropriate calibration tools, gauges, and documentation software to record compliance in real-time. Identifying a defect on day one prevents that same defect from being replicated across ten thousand modules by day thirty.

3.1 Foundation & Grounding Checks

Foundation QC requires measuring three primary metrics: embedment depth, positional tolerance, and plumbness. For driven piles, inspectors must log the blow-counts or final driving pressures to verify soil refusal correlates with the design. Plumbness must be checked using a digital level or smart-level tool, typically requiring deviations of less than 1 to 2 degrees off vertical. Out-of-plumb piles create severe alignment issues for the superstructure. For cast-in-place caissons, concrete slump tests and rebar cage inspections are mandatory. Ensure all measurements conform to the baseline
foundation installation process.

3.2 Structural Assembly and Alignment Quality Check

Once the foundations are approved, the primary and secondary steel framing is erected. QC personnel must verify that all splice connections are properly seated and that thermal expansion gaps (crucial for long rail runs) meet the engineered specifications. Laser alignment tools and string lines should be deployed to ensure the rails form a perfectly flat plane; any “waviness” in the structure will transfer directly into the module frames, voiding warranties and creating stress concentrations. Follow the exact dimensional tolerances outlined in the
rail module mounting standards.

3.3 Torque & Fastening Standards for Modules

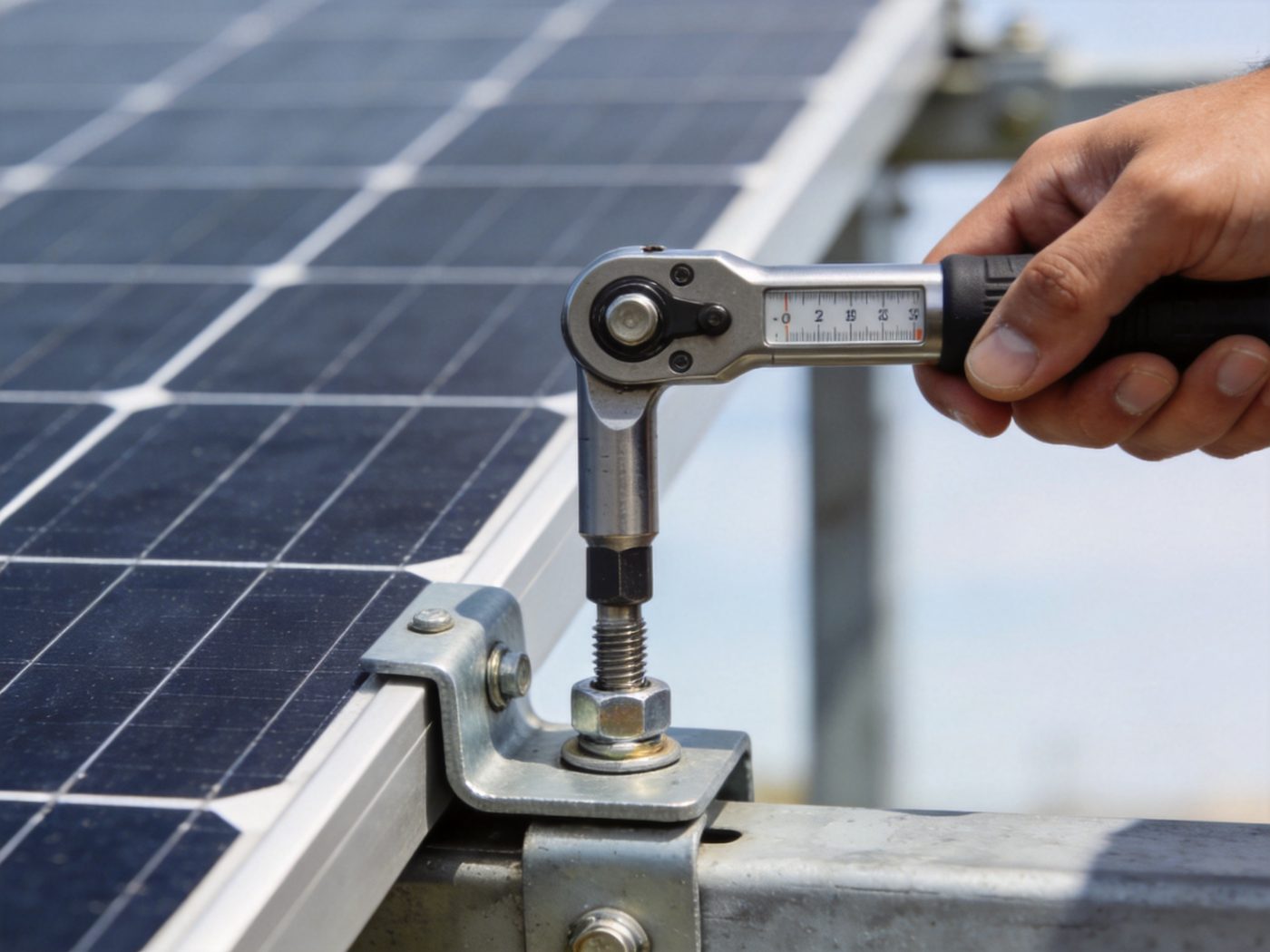

Improper fastening is the single most common quality failure in mechanical solar assembly. QC inspectors must perform randomized, statistically significant audits of bolt tension across the array. Installers must use torque marks (paint pen lines drawn across the bolt head and structure) to visually indicate that a fastener has been tensioned. Inspectors then use calibrated torque wrenches to test a sample of these marked bolts; if a bolt moves before the wrench clicks at the target value, the connection fails. This sampling must strictly adhere to the project’s
fastener torque specifications.

3.4 Electrical Grounding & Bonding Tests

Mechanical completion is meaningless without electrical continuity. Because solar racking utilizes anodized aluminum and galvanized steel, creating a continuous electrical fault path requires piercing these non-conductive coatings. QC technicians must utilize micro-ohm meters to test the resistance across module clamps equipped with bonding pins, as well as across rail splices utilizing bonding jumpers. The resistance must remain below the strict thresholds dictated by the NEC to ensure rapid tripping of overcurrent protection devices. Document these critical test results in accordance with standard
grounding and bonding procedures.

4. Engineering Design Considerations for Quality Control

Quality control is fundamentally the verification that the system, as built, can withstand the environmental forces it was engineered to endure. Inspectors must understand the structural mechanics behind the racking system to properly evaluate whether a field deviation is a minor cosmetic issue or a critical structural flaw.

4.1 Wind Load & Snow Load Testing for Structural Integrity

The racking system’s capacity to resist extreme weather is entirely dependent on the quality of its assembly. QC must ensure that cantilever limits (the length of rail extending past the last support post) are not exceeded, as these sections are highly vulnerable to wind flutter and snow deflection. Perimeter zones, which experience the highest wind uplift, must be audited to verify that the tighter clamp spacing required by the engineering plans has been correctly implemented. Connect these field observations back to the theoretical limits defined by the
wind load calculation methods.

4.2 Thermal Expansion Testing & Tolerance Limits

Metals expand and contract dynamically with temperature variations. During installation, QC must verify that the specified thermal breaks—gaps intentionally left between long rail sections—are present and accurately measured. If rails are installed completely flush during winter, the aluminum will expand during summer heat, causing the entire array to buckle and potentially shatter the module glass. Auditing these expansion gaps is a non-negotiable quality checkpoint.

4.3 Corrosion & Material Fatigue Resistance Testing

A system’s 30-year lifespan relies on the integrity of its protective coatings. QC inspectors must check for scratched galvanization, improper field cuts, or the unauthorized pairing of dissimilar metals (like bare copper directly touching aluminum), which accelerates galvanic corrosion. Any damaged surfaces identified during the walk-down must be treated with approved cold-galvanizing compounds or zinc-rich paints, verifying compliance with the project’s overall
corrosion protection strategies.

4.4 Seismic Load Testing & Structural Deflection Analysis

In seismically active regions, the racking structure is designed to flex and absorb energy without fracturing. QC must verify that specific seismic bracing is installed correctly and that base plate connections have the appropriate structural washers and torque applied to allow for controlled movement. Unauthorized rigid modifications made by field crews to “stiffen” the structure can actually cause catastrophic brittle failure during an earthquake. Ensure all field modifications are cleared against
seismic design standards.

5. Quality Control After Installation (Final Inspection)

The final phase of QC transitions the project from mechanical construction to electrical commissioning. This phase culminates in the generation of a comprehensive punch-list and the final sign-off from both the Engineer of Record (EOR) and the municipal Authority Having Jurisdiction (AHJ).

5.1 Inspection Procedures Post-Installation

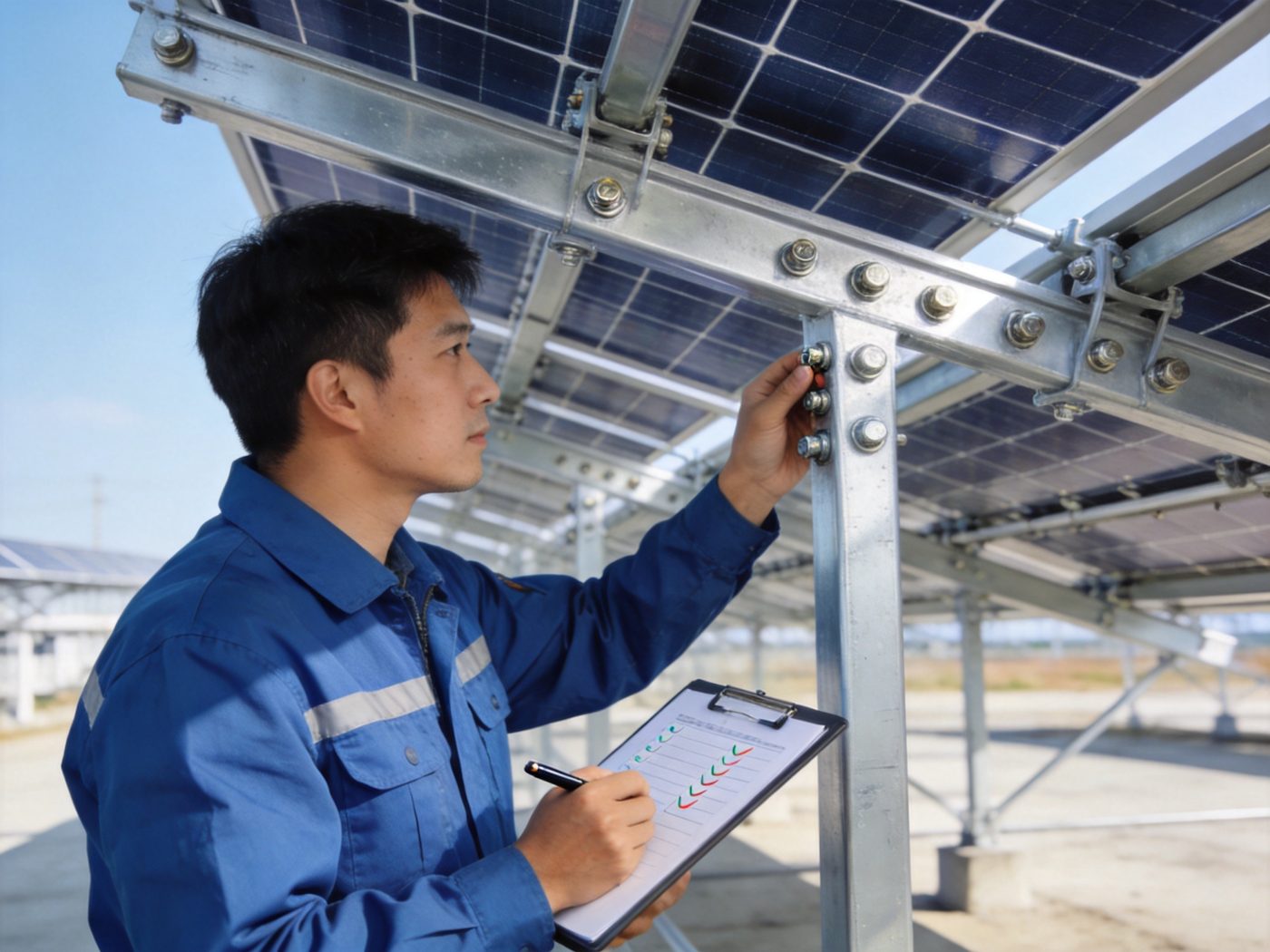

A full visual walk-down of the array is required. Inspectors look for macroscopic alignment issues, sagging rails, dangling wire management, and missing end-caps. Structurally, the inspector reviews the torque witness marks across the entire field. Electrically, megger testing is performed on the DC home runs to ensure no wire insulation was nicked or damaged during the module mounting phase, which could lead to dangerous ground faults when the system is energized.

5.2 Post-Installation Performance Testing (Commissioning)

Commissioning validates that the mechanical and electrical systems interact seamlessly. For fixed-tilt systems, this involves verifying open-circuit voltages and string polarity. For tracker systems, commissioning is vastly more complex, requiring slew tests to ensure the array rotates fully from east to west without binding, grinding, or structural interference. All final test results, deviations, and as-built drawing updates are compiled into the formal
installation quality control checklist for client handover.

6. Common Quality Control Issues & Troubleshooting

Proactive QC anticipates common failure modes. Recognizing these issues early allows site managers to retrain crews before localized mistakes become systemic project failures.

• Misaligned Modules: Typically caused by underlying rails that were not leveled correctly. Attempting to force the modules into alignment stresses the glass. The root cause (the rail-to-purlin connection) must be adjusted.
• Loose Fasteners or Incorrect Torque: Frequently resulting from the unauthorized use of impact drivers instead of calibrated torque wrenches. Hardware suspected of being over-torqued and yielded must be entirely replaced, not just loosened.
• Grounding Continuity Failures: A high-resistance reading across a module clamp usually indicates that the bonding pinfailed to pierce the anodized coating, often due to under-torquing. The clamp must be re-seated and re-torqued.
• Improper Electrical Connections: Loose MC4 connectors or wires resting directly on sharp metal edges. All wire management must be elevated and secured using UV-rated clips, preventing abrasion and subsequent ground faults.

7. Maintenance & Long-Term Quality Control

Quality control does not end at commissioning; it transitions into Operations and Maintenance (O&M). Long-term QC involves annual inspections to monitor how the structure is aging under environmental stress. Technicians must perform statistical torque audits to identify bolts that have vibrated loose, inspect protective coatings for rust blooming, and verify that thermal expansion joints are still functioning freely. These recurring audits are the foundation of comprehensive
structural integrity assessment protocols, ensuring the array remains safe and productive for decades.

8. FAQs

What happens if a foundation pile fails a pull-out test?

If a pile fails to reach the required uplift resistance, it cannot be used as originally designed. The structural engineer must provide a remediation plan, which typically involves driving the pile deeper, switching to a larger pile profile, or adding a concrete collar to increase friction and dead weight.

Why do inspectors require torque marks on every bolt?

Torque marks (witness marks) provide visual proof that a bolt was intentionally tightened, not just finger-threaded and forgotten. Furthermore, they serve as a critical maintenance indicator; if the line on the bolt head no longer aligns with the line on the steel years later, the inspector instantly knows the bolt has vibrated loose and requires re-torquing.

How do you measure electrical grounding continuity on a mechanical frame?

Continuity is measured using a specialized micro-ohm meter or a high-quality multimeter. The technician places one probe on the aluminum frame of the furthest solar module and the other probe on the main grounding lug of the racking rail. The instrument measures the electrical resistance of the entire mechanical path, which must typically remain below 0.5 ohms.

What is a “Hold Point” in solar installation?

A Hold Point is a mandatory pause in the construction sequence where work cannot proceed until a quality inspector reviews and approves the preceding tasks. For example, concrete cannot be poured into a caisson until the rebar cage and anchor bolts have passed a Hold Point inspection.
