Solar Rail & Module Mounting Guide (Alignment, Clamping & Torque Control)

Executive Summary

Module mounting is often treated as a simple repetitive task, but it is actually a highly controlled structural fastening operation. A misaligned rail induces torsion into the module frame; an under-torqued clamp allows modules to slip during wind events; and an over-torqued clamp can shatter glass or compromise electrical bonding. This guide establishes the engineering boundaries for rail placement, thermal gap control, and fastener tensioning.

By treating the rail-to-module connection as an integrated mechanical and electrical system, installation teams can eliminate the most common root causes of array failure, ground faults, and warranty rejections.

1. Scope & Applicable Systems

This guide focuses exclusively on the secondary structural elements (rails/purlins) and the module attachment hardware (clamps, bolts, and bonding pins). The principles of alignment, thermal expansion management, and torque control detailed here apply universally, though the specific hardware geometries will change based on the primary structure type. Whether you are building a residential roof or a utility-scale field, the mechanical physics of clamping a glass-and-aluminum rectangle to a metal substructure remain the same.

The failure to adhere to these principles—specifically regarding clamp placement zones and torque limits—is the leading cause of module manufacturer warranty voids following extreme weather events.

1.1 Ground Mount Applications

In ground mount systems, the rails (often heavy steel C-channels or Z-purlins) span across the primary girder grid. The long, continuous rail runs require careful management of thermal expansion joints to prevent buckling during seasonal temperature swings. The high wind and snow load capacities of these systems rely heavily on correct clamp spacing. For the preceding structural steps, review the ground mount installation process.

1.2 Roof Mount Applications

Roof mount systems typically utilize lightweight extruded aluminum rails. Alignment here is complicated by the irregularities of the roof surface (deflecting rafters or uneven decking). The rail system must be adjusted using L-feet or standoffs to create a flat, planar mounting surface, preventing the module frames from twisting when clamped down. For the flashing and structural attachment prerequisites, see the roof mount installation guide.

1.3 Tracker Systems

Module mounting on single-axis trackers is uniquely demanding because the array is constantly in motion. Module alignment must be perfectly balanced around the torque tube to prevent asymmetric drive loads. Furthermore, clamp torque must withstand continuous vibration and cyclic loading as the array slews from east to west daily. For the broader context of tracking mechanics, refer to the tracker installation process.

2. Pre-Installation Planning

Before moving rails from the staging area to the structure, the installation team must understand the specific tolerances required by both the racking manufacturer and the module manufacturer. A common error is assuming that hardware from different projects is interchangeable. The clamp design, bolt length, and required torque are engineered specifically for the module frame thickness and rail profile being used.

Planning must also account for wire management. The location of the rails dictates how string wires will be routed, supported, and protected from abrasion and UV exposure. Determine the wire path before locking down the rail positions.

2.1 Structural Alignment Requirements

The primary structure must be confirmed plumb and square before secondary rails are installed. If the foundation or columns are out of tolerance, the rails will not sit flush, leading to “bridging” where the clamp cannot fully engage the module frame. Review the connection details to ensure the interface between primary and secondary steel allows for the necessary dimensional adjustment, referencing structural connection design principles.

2.2 Rail Material & Strength Review

Confirm that the rail material onsite matches the engineered bill of materials. A lighter gauge rail might look identical to a heavier one but will fail under peak snow or wind loads. Ensure that cantilever limits (the distance a rail extends past its last support) and span limits are explicitly marked on the installation plans. For context on how gauge impacts capacity, see material thickness and strength.

2.3 Wind & Load Considerations

The position of the clamp on the module frame directly dictates the module’s wind and snow load rating. Clamping too close to the module corners or too close to the center will drastically reduce the pressure the glass can withstand before breaking. The project engineer determines these clamping zones based on site-specific environmental data using standard wind load calculation methods.

3. Tools & Equipment Required

Precision module mounting requires more than just an impact driver. Relying solely on impact tools is a primary cause of stripped threads, over-torqued clamps, and shattered modules. The required tooling includes:

• Alignment: Laser levels, string lines, and tape measures for establishing straight rail runs and consistent module gaps.
• Cutting & Prep: Portable band saws or cold saws for trimming rail ends, and deburring tools to remove sharp edges that could damage wiring.
• Fastening: Calibrated torque wrenches (essential for final tightening), deep sockets, and specialized bit drivers matching the clamp hardware.
• Electrical: Multimeters for continuity testing to verify bonding path integrity.

Every installation crew must have a calibrated torque wrench onsite. For the specific tension requirements across different hardware types, use the bolt torque specifications as your daily reference.

4. Installation Workflow Overview

To maintain production rates without sacrificing quality, crews should follow a standardized, repeatable sequence:

1. Structure Ready: Verify primary framing is secure and within tolerance.
2. Rail Placement: Set rails at the engineered spacing, observing cantilever limits.
3. Alignment Check: Square and level the rail plane.
4. Module Positioning: Lay modules into place, ensuring they fall within the approved clamping zones.
5. Clamping: Install mid and end clamps with thermal gaps established.
6. Torque Verification: Final tighten with a calibrated torque wrench.
7. QA: Visual inspection, torque marking, and bonding continuity checks.

5. Step-by-Step Rail & Module Mounting Process

This section details the critical path for the mechanical attachment of the array. Strict adherence to these steps ensures that the system will perform structurally and electrically for its entire design life.

5.1 Rail Placement & Spacing

Measure and mark the required rail spacing along the primary structure. This spacing must align exactly with the module manufacturer’s approved clamping zones (e.g., quarter-point mounting). Secure the rails to the structure using the specified brackets or purlin clips. Ensure that the rail splices are installed correctly; some systems require splices to be located at specific distances from support points to maintain structural continuity. For large arrays, coordinate the rail layout with the overall solar site layout process to ensure rows remain parallel.

5.2 Rail Alignment & Leveling

A module array is only as flat as the rails beneath it. Use a string line pulled tight across the top of the rails to check for dips or crowns. On roof systems, adjust the height of the L-feet or standoffs to bring all rails into a single plane. On ground systems, adjust the purlin connections. If rails are forced into alignment by tightening the module clamps, the module frame will carry a permanent torsional pre-load, making the glass highly susceptible to micro-cracking under normal wind conditions.

5.3 Mid Clamp & End Clamp Installation

End clamps secure the perimeter modules, while mid clamps secure adjacent modules and dictate the spacing between them. Ensure the clamp matches the thickness of the module frame exactly (e.g., 30mm, 35mm, or 40mm). A mismatched clamp will not seat properly and will fail under uplift. When installing clamps with integrated grounding pins, ensure the pins pierce the anodized coating of the module frame. Tighten the hardware initially with a drill/driver set to a low clutch setting, never an impact driver. Final tightening must be verified against recommended torque values.

5.4 Module Placement & Gap Control

As modules are placed, ensure the wiring leads are secured and not pinched between the frame and the rail. Maintain consistent gaps between modules (typically 1/4 to 3/4 inch, dictated by the mid clamp design) to allow for thermal expansion. Without adequate spacing, the aluminum frames will expand in the summer heat, pressing against each other and causing the array to buckle or glass to shatter. Utilize spacer tools or the mid clamp bodies themselves to enforce this uniform gap across the entire row.

5.5 Torque Application & Verification

This is the most critical QA step in module mounting. Use a calibrated torque wrench to bring every single clamp bolt to the exact specification dictated by the racking manufacturer. Under-torquing leads to catastrophic array loss during storms; over-torquing crushes the module frame and damages the bolt threads. Once a bolt reaches the required tension, mark the bolt head and clamp with a paint pen. This visual indicator proves to QA inspectors that the connection was verified, guided by the fastener torque guide.

5.6 Grounding Continuity Check

Because most modern mid clamps utilize integrated bonding pins to ground the module frames to the rail, mechanical securement equals electrical safety. However, paint, dirt, or insufficient torque can prevent the pin from making metal-to-metal contact. Once a row is complete, use a multimeter to test electrical continuity from the furthest module frame to the grounding lug at the end of the rail. Resistance must remain below the code-required threshold (typically less than 0.5 ohms) to satisfy grounding and bonding requirements.

5.7 Final Quality Inspection

Before declaring the mechanical installation complete, the QA lead must walk the array. Inspect for consistent module gaps, straight lines, properly managed wires (no drooping or sharp bends), and 100% paint marking on torque connections. Check the rail ends to ensure cantilever limits have not been exceeded and that end caps are installed if specified. Document this walk-through using the formal installation quality control checklist.

6. Engineering Design Considerations

The rules regarding clamp placement, rail spans, and torque are not arbitrary; they are derived from rigorous structural engineering calculations and wind tunnel testing. Installers must understand the “why” behind the instructions to prevent well-intentioned but dangerous field modifications.

6.1 Wind Uplift on Modules

Wind flowing over and under an array creates severe negative pressure (suction) that attempts to tear the modules off the rails. The clamp’s holding force is the only thing resisting this uplift. The required torque values are calculated to provide sufficient clamping friction while preventing the bolt from stretching past its yield point under dynamic wind cycling, complying with regional wind load standards.

6.2 Snow Load & Module Deflection

Heavy snow creates downward pressure that causes the module glass and frame to bow. If the mounting rails are spaced too far apart, or if the clamps are placed too close to the module center, the frame cannot adequately support the glass, leading to catastrophic failure. Adhering to the manufacturer’s clamping zones is essential for mitigating the risks outlined in snow load considerations.

6.3 Thermal Expansion & Gap Control

Aluminum has a high coefficient of thermal expansion. In a long row of modules, the cumulative expansion of the frames and rails can be over an inch between winter and summer. Racking designs dictate maximum continuous rail lengths (often 40 to 60 feet) before a thermal break is required. Installing a single continuous rail beyond this limit will result in structural buckling and damaged modules.

6.4 Corrosion & Clamp Durability

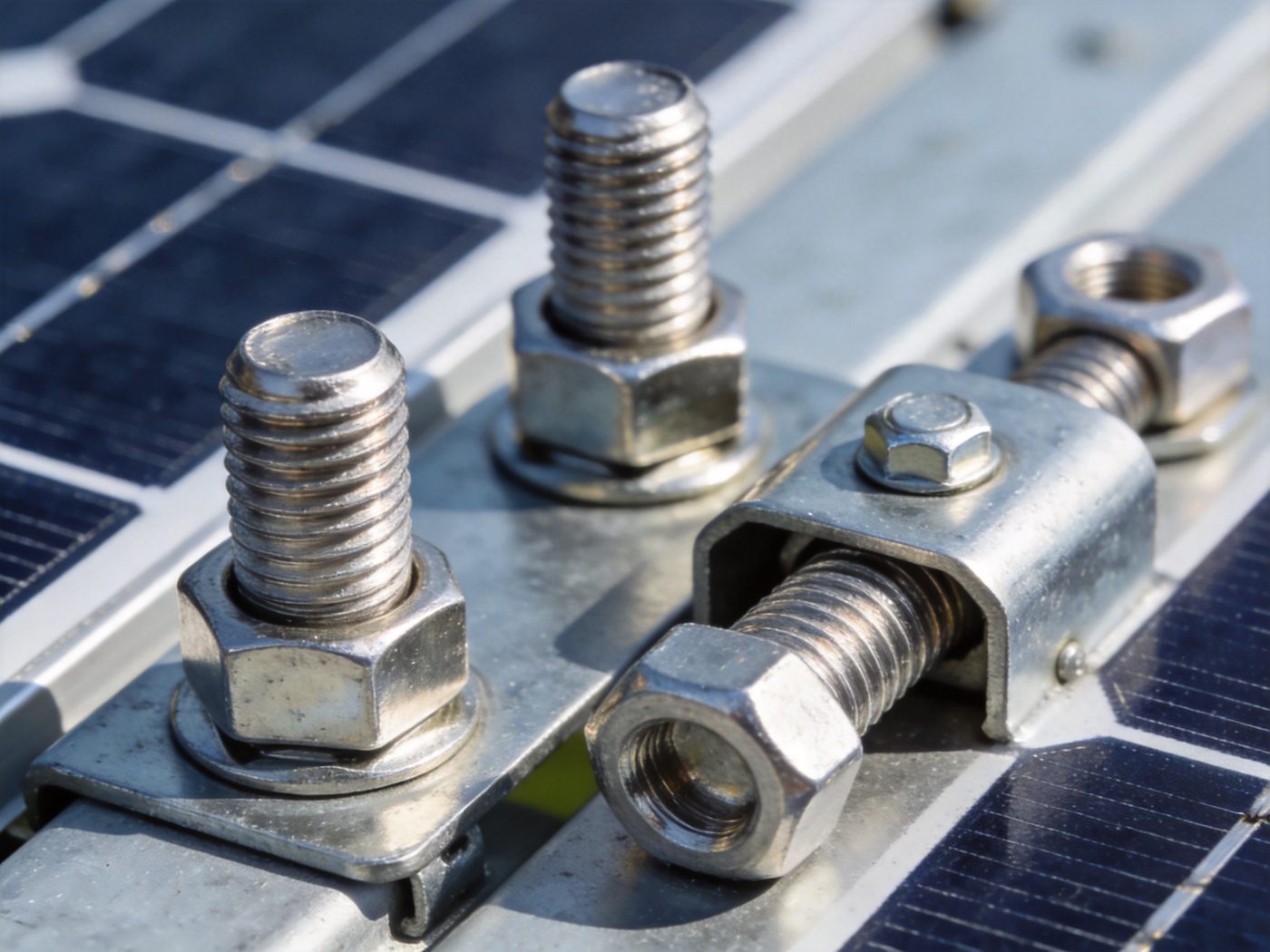

Clamps and bolts are typically made from stainless steel or specialized coated alloys to prevent galvanic corrosion when in contact with aluminum module frames. Substituting field-sourced zinc-plated bolts for factory stainless hardware will introduce rapid corrosion, eventually causing the clamp to fail. Use only approved hardware to maintain the integrity of the corrosion protection strategies.

7. Special Installation Conditions

Extreme environments require tightening the acceptable tolerances and increasing the frequency of QA inspections during the module mounting phase.

7.1 High Wind Areas

In hurricane or high-wind zones, four-point clamping may not be sufficient. Engineering may specify six-point mounting (adding extra rails and clamps) or the use of through-bolting (bolting directly through the module frame holes) rather than friction clamps. Follow the precise hardware configurations detailed in the high wind installation guidelines.

7.2 Cold Climate Installations

Freezing temperatures affect the workability of materials and the accuracy of torque tools. Metals contract, which can alter the seating of clamps. Furthermore, ice buildup on rails during installation can prevent modules from sitting flush. Ensure rails are clear of ice and adjust torque wrench calibration protocols according to the cold climate installation requirements.

8. Safety & Risk Management

Module mounting involves handling large, heavy, wind-catching objects, often at height. High winds during installation can turn a module into a sail, throwing workers off balance. Establish clear wind-speed cutoffs for module handling. Additionally, as soon as modules are exposed to light, they generate voltage. Treat all string wires as live and ensure connectors are kept dry and off the ground. Incorporate these specific hazards into the daily JHA, referencing the core solar installation safety procedures.

9. Common Failures & Troubleshooting

Identifying and correcting mounting errors immediately prevents costly rework and long-term system degradation.

• Misaligned Rails: Visually apparent as wavy module rows. Do not try to fix this by forcing the module down with the clamp; unbolt the module, adjust the rail height at the structural connection, and remount.
• Over-torqued Clamps: Often caused by using impact drivers. Signs include deformed clamp bodies or crushed module frame lips. The hardware must be replaced, as its structural integrity is compromised.
• Insufficient Grounding: A failed continuity check usually means the bonding pin did not pierce the anodization. This is often due to under-torquing. Re-torque the clamp with a calibrated wrench and retest.
• Modules Slipping: Occurs when clamps are not seated correctly in the module frame channel before tightening. Loosen the clamp, square it to the frame, and retighten.

10. Maintenance Implications

The longevity of the module mounting system dictates the O&M schedule. Cyclic wind loading can slowly back out fasteners that were not torqued correctly during installation. Maintenance plans should include an annual visual inspection of clamp positioning and a physical torque audit of a statistically significant sample of module clamps to verify tension retention. Establish these baselines using the structural integrity assessment protocol.

11. FAQs

Why can’t I use an impact driver to install module clamps?

Impact drivers apply uncontrolled, concussive force. They easily exceed the 10-15 ft-lb torque limit of most aluminum clamps, stripping threads, crushing the module frame, and shattering the glass. They also cause stainless steel hardware to gall (cold weld) to aluminum threads, making future maintenance impossible. Always use a drill/driver with a clutch for initial seating, followed by a torque wrench.

Does clamp placement really matter if the module is secure?

Yes, absolutely. The module glass is tested and certified to withstand specific wind and snow pressures only when supported at specific points along its frame (the clamping zones). Clamping outside these zones changes the flexural dynamics of the glass, drastically reducing its strength and voiding the manufacturer’s warranty.

How do I know if the grounding pin is working?

The only way to verify integrated grounding is through an electrical continuity test using a multimeter. You cannot verify bonding visually. Test from the module frame (scratching through the anodized layer with the probe) to the rail grounding lug to confirm a continuous, low-resistance path.

What should I do if the rail is bent or damaged before installation?

Do not install it. A bent rail has compromised structural integrity and will not allow modules to sit flat, leading to torsion on the glass. Discard the damaged section or cut it back to a straight portion, provided the remaining length still meets engineering span requirements.
