Dual-Axis Tracking Solar PV Mounting System

Engineered for maximum irradiance capture and 30–40% higher annual energy yield in high-value solar applications — the definitive solution for CPV systems, high-DNI utility projects, and precision solar research installations.

  • ☀️ +30–40% annual energy yield versus fixed-tilt systems in high-DNI environments
  • 🔄 Full azimuth (0°–360°) and elevation (0°–90°) tracking for perpendicular irradiance at all hours
  • 🎯 Precision-engineered for CPV systems, high-DNI utility projects, and solar research facilities
Request Engineering Proposal
Download Technical Brochure

Designed and manufactured to ASCE 7 / IEC 62817 / EN 1991 standards

Technical Overview of Dual-Axis Tracking Systems

System Type

A dual-axis tracking system simultaneously adjusts the PV array in two independent axes: azimuth (horizontal rotation, 0°–360°) and elevation (vertical tilt, 0°–90°). This two-dimensional continuous alignment ensures that the module surface maintains a perpendicular orientation to direct solar irradiance at every moment throughout the day and across all seasons — capturing the maximum possible incident radiation at every solar position. Unlike single-axis trackers that optimize only one angular dimension, dual-axis systems eliminate all cosine loss from angle-of-incidence deviation, achieving theoretical incident irradiance within 0.1°–1° of the ideal perpendicular throughout daylight hours.

Structural Design

The core structural concept is a central support mast anchored to a reinforced foundation, topped by an azimuth rotation drive assembly. The module-carrying frame is mounted above the azimuth drive and connected to an elevation adjustment mechanism — either a hydraulic linear actuator or a precision geared motor — that tilts the entire frame from horizontal to vertical. This architecture creates a mechanically elegant but structurally complex assembly: the combined dead load of the frame and modules is carried eccentrically as the elevation angle changes, requiring careful counterbalancing design and robust bearing selection to maintain positioning accuracy and minimize drive motor power consumption.

Foundation Method

Dual-axis trackers impose larger eccentric moment loads and base shear forces than single-axis tracker rows, requiring more robust foundation solutions. The standard approach is a reinforced concrete pier foundation — typically 600–900 mm diameter and 2.0–3.0 m deep — designed to resist the combined overturning moment from the module array at maximum wind load with the tracker in the worst-case elevated stow position. For sites with good bearing capacity soils, large-diameter deep steel pile foundations may substitute for concrete piers with reduced construction time. For a broader overview of foundation engineering approaches for all ground-based systems, see Ground-Mounted Solar Systems.

Suitable Terrain

Flat or near-flat terrain is strongly preferred for dual-axis tracker installations. The 360° azimuth rotation envelope requires unobstructed horizons in all directions, and the wide inter-unit spacing required to prevent mutual shading at low elevation angles makes sloped terrain difficult to manage. Sites with less than 3°–5° natural slope are ideal; beyond this, individual unit levelling or foundation height adjustments are required.

Typical Project Scale

Dual-axis tracking is most commonly deployed at project scales of 50 kW to 20 MW — smaller than the utility-scale applications dominated by single-axis trackers. Individual tracker units typically carry 10–50 kW of PV capacity, with projects assembled from arrays of units sharing a common SCADA control backbone. Larger concentrating photovoltaic (CPV) installations may reach 30–50 MW but remain a niche segment of the total solar market by installed capacity.

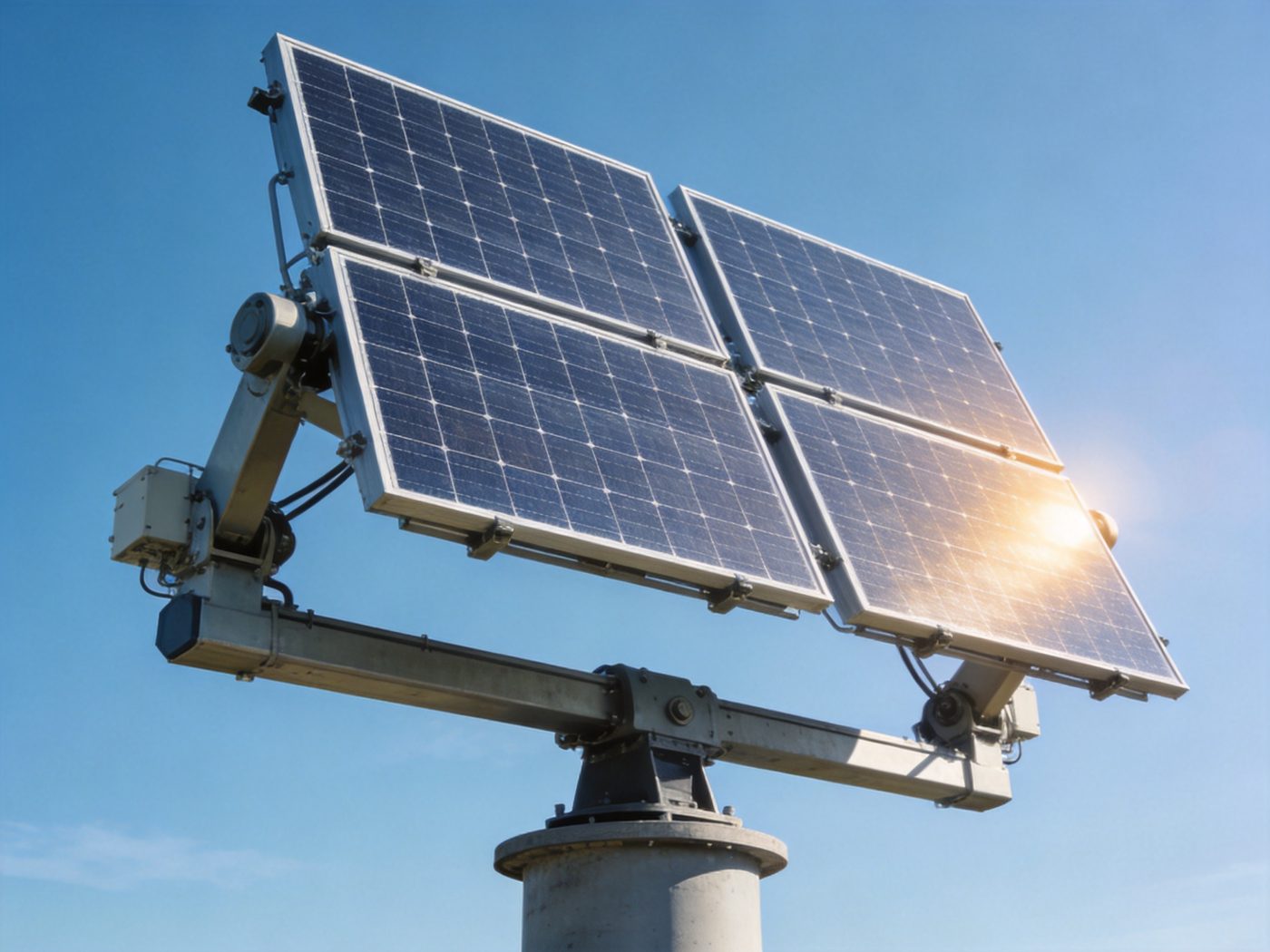

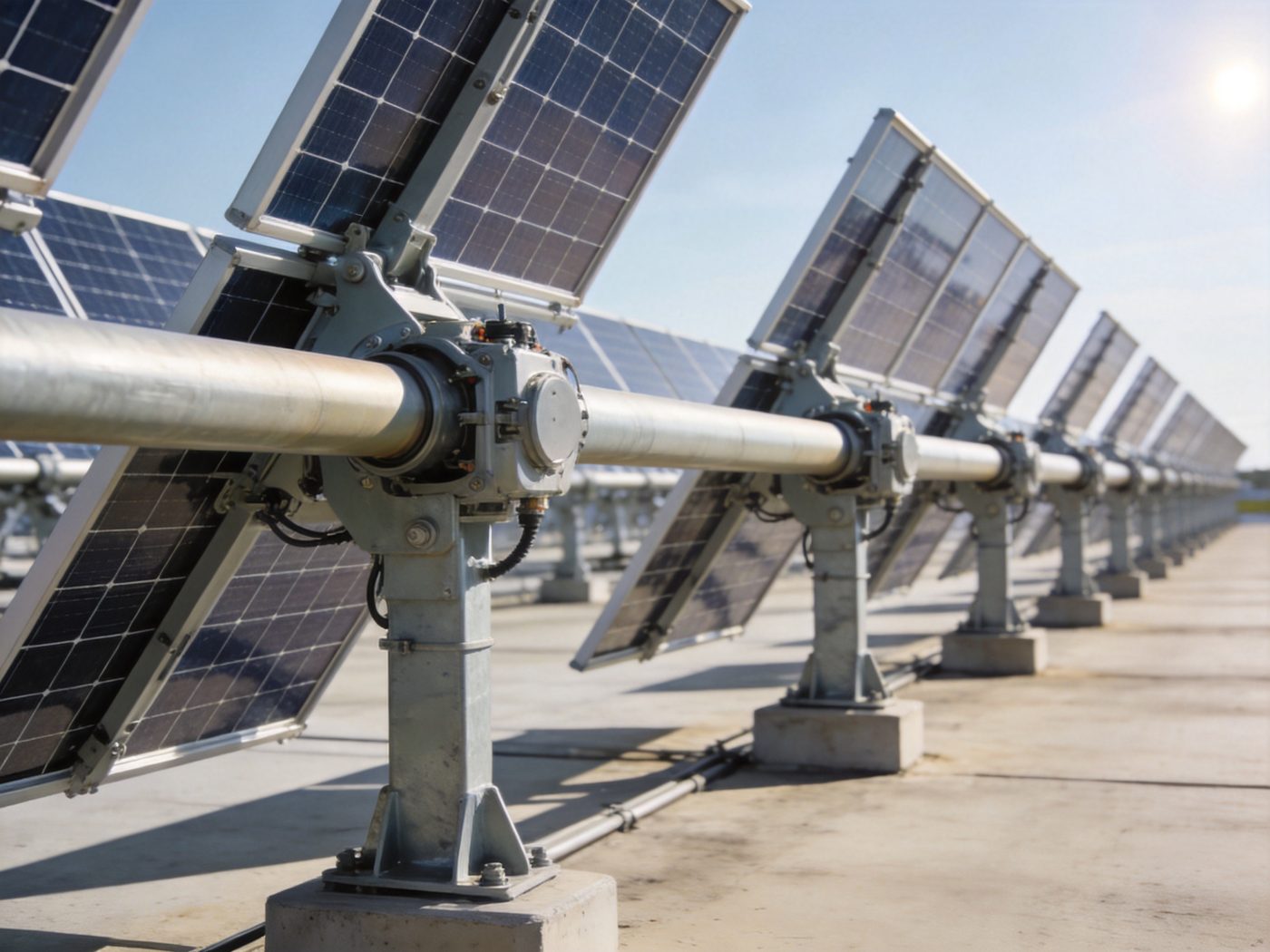

Structural Architecture & Core Components

Central Support Mast

The central mast is the primary vertical load-carrying element of the dual-axis tracker — a hot-dip galvanized structural steel column typically 150–300 mm diameter and 3–6 m in height, anchored to the concrete pier foundation via a heavy-duty flange bolted assembly. The mast must simultaneously carry the full vertical dead load of the rotating frame and module array, transfer lateral wind and seismic forces to the foundation, and provide a precision-machined upper interface for the azimuth rotation drive assembly. Mast wall thickness and cross-section geometry are selected by structural analysis to maintain lateral deflection at the top within the tracking accuracy tolerance (typically ≤ 5 mm at operating wind speeds), ensuring that structural deformation does not compromise the positioning precision of the tracking algorithm.

Azimuth Rotation Drive

The azimuth drive assembly is mounted atop the central mast and enables 360° continuous horizontal rotation of the module-carrying frame. The drive mechanism consists of a large-diameter slew ring bearing — typically 500–1,200 mm outer diameter depending on tracker capacity — coupled to a worm-gear reduction motor or ring-gear drive system. The slew bearing transfers the full module array dead load and overturning moment to the mast while enabling smooth rotation at speeds of approximately 0.5°–2°/minute under normal tracking conditions. The worm-gear self-locking characteristic is a critical safety feature: in the event of power failure, the azimuth axis locks at its current position without any braking mechanism, preventing uncontrolled rotation under wind loading. Anti-backlash gear design maintains azimuth positioning accuracy of ±0.1°–0.3°.

Elevation Adjustment Mechanism

The elevation (or altitude) axis enables the module frame to tilt from 0° (horizontal) to 90° (vertical) in a north-facing plane, following the sun’s changing height above the horizon throughout the day and across seasons. The drive mechanism is typically a precision linear actuator (hydraulic or electromechanical) or a rack-and-pinion geared motor system connecting the main mast column to the tilting frame. Hydraulic actuators provide high force output with smooth continuous motion and inherent position-holding capability under load, making them the preferred choice for large high-capacity tracker units (above 20 kW per unit). Electromechanical actuators are lighter, maintenance-friendlier, and more amenable to remote diagnostics — preferred for modular systems below 15–20 kW per unit. Elevation positioning accuracy is maintained to ±0.1°–0.5° through encoder feedback to the control system.

Control System & Sensors

Each dual-axis tracker unit is governed by a dedicated programmable logic controller (PLC) or embedded microcontroller executing a high-precision astronomical algorithm. The algorithm calculates the theoretical sun position (azimuth and elevation) in real time from GPS-synchronized time and site coordinates, then drives both axes to the corresponding angles. Closed-loop position feedback is provided by incremental encoders on both drive axes, and a pyranometer or sun sensor validates actual irradiance direction against the calculated position. The PLC also manages protective functions: automatic stow in high-wind conditions (triggered at ≥18–20 m/s), anti-icing mode for sub-zero temperatures, and nighttime horizontal park position. All units communicate performance data — position, energy output, fault codes — to a central SCADA system via RS-485 or wireless (4G/Wi-Fi) for remote monitoring and alarm management.

Engineering Specifications

Structural Parameters

The table below presents the standard engineering parameters for a commercial-grade dual-axis tracking PV system. All project-specific values require validation by a licensed structural engineer in accordance with applicable codes and site-specific geotechnical data.

Parameter Typical Specification
Wind Load Resistance (Stow) Up to 55–60 m/s (198–216 km/h) in stow position
Operating Wind Speed Limit ≤ 18–20 m/s; auto-stow above threshold
Snow Load Capacity 1.0–1.5 kN/m² (≈ 21–31 PSF)
Azimuth Rotation Range 0°–360° continuous
Elevation Rotation Range 0°–90° (horizontal to vertical)
Tracking Accuracy ±0.1°–0.5° (encoder closed-loop + astronomical algorithm)
Primary Material Hot-dip galvanized structural steel mast; 6005-T5 / 6061-T6 structural aluminum frame
Foundation Type Reinforced concrete pier (600–900 mm dia.) or deep steel pile foundation
Drive System Slew ring + worm-gear motor (azimuth); linear actuator or rack-pinion (elevation)
Control System PLC + GPS-synchronized astronomical algorithm + encoder feedback + pyranometer
Communication RS-485 Modbus / 4G wireless / Wi-Fi; SCADA compatible
Design Life (Structural) 25+ years; drive bearing service interval 5–8 years

Compliance & Standards

All dual-axis tracking systems are engineered and tested to the following international standards to ensure structural integrity, electromechanical safety, tracking performance, and project finance bankability:

  • ASCE 7-22: Minimum design loads — wind, snow, seismic, and combinations for open terrain structures
  • IEC 62817: PV tracking systems — design qualification and type approval; covers structural, mechanical, and electrical safety of the complete tracker assembly
  • IEC 61215 / IEC 61730: Module mechanical and electrical safety standards governing the mounting interface and clamp design
  • EN 1991-1-4 (Eurocode 1): Wind actions on structures — applicable to European and export-market projects
  • ISO 1461 / ASTM A123: Hot-dip galvanizing specification for structural steel components, providing ≥ 85 µm zinc layer thickness
  • IEC 62446: Grid-connected PV systems — documentation, commissioning testing, and inspection requirements

Installation & Commissioning

Foundation Preparation

Foundation construction is the most time-critical phase of dual-axis tracker installation and requires a minimum concrete curing period of 14–28 days before structural loading. Each reinforced concrete pier is bored to the specified diameter (600–900 mm) and depth (2.0–3.0 m) using hydraulic rotary drilling equipment, then poured with structural-grade concrete (minimum 30 MPa compressive strength) around a pre-positioned rebar cage. The mast base flange anchor bolts are set precisely in position using a template jig and surveyed to ±2 mm tolerance before the concrete sets — any misalignment at this stage directly compromises azimuth drive alignment and cannot be corrected after curing. Multiple piers can be bored and poured simultaneously using parallel crews, with typical output of 8–15 foundations per day per drilling rig.

Mast & Frame Assembly

Once foundation concrete has achieved the specified curing strength (typically 28-day cylinder strength ≥ 30 MPa), the central mast column is craned into position and bolted to the anchor flange to the specified torque. The slew bearing ring assembly is then installed atop the mast, followed by the rotating azimuth frame structure. The module-carrying elevation frame is attached to the azimuth frame via the elevation-axis pivot journals, and the complete mechanical assembly is verified for smooth manual rotation in both axes before drive motors are installed. All structural bolts are torqued to specification and marked for subsequent inspection.

Drive Motor Installation

The azimuth slew-drive motor is bolted to its mounting bracket on the rotating frame and engaged with the slew ring gear under controlled meshing pre-load. The elevation actuator or rack-pinion motor is fitted between the azimuth frame and the elevation tilt frame, with clevis pin connections at each end torqued to specification. Drive motor electrical connections are made in accordance with the wiring diagram, and motor rotation direction is verified before control system integration. All drive-system cable runs are routed in UV-resistant flexible conduit with drip loops to prevent moisture ingress.

Calibration & Commissioning

System commissioning begins with GPS coordinate entry and clock synchronization in the PLC. Both axes are driven through the full rotation range to verify mechanical stop operation and encoder count integrity, then set to a known reference position for encoder zero calibration. The astronomical tracking algorithm is activated and the actual tracker angle is verified against a calibrated inclinometer (elevation) and compass (azimuth) at three or more known solar positions throughout the commissioning day. SCADA communication link integrity, alarm functions, and auto-stow wind response are all verified before the unit is handed over to the electrical installation team.

Energy Performance & Financial Impact

Maximum Energy Yield

Compared to Fixed-Tilt Solar Mounting Systems, dual-axis tracking can increase annual energy yield by 30–40% in high-DNI environments. This exceptional yield premium is achieved by maintaining perpendicular module orientation to direct solar irradiance throughout the entire day and across all seasons — eliminating the cosine loss from angle-of-incidence deviation that reduces the output of both fixed-tilt and single-axis tracking systems during morning, evening, and winter periods. In high-DNI locations (daily global horizontal irradiance > 5.5 kWh/m²/day), such as the MENA region, the Atacama Desert, the Rajasthan corridor in India, and the Southwest United States, the dual-axis yield premium represents a substantial increase in annual energy revenue. For concentrating photovoltaic (CPV) systems — which require high-precision direct normal irradiance (DNI) tracking to focus sunlight onto small, ultra-high-efficiency cells — dual-axis tracking is not an option but a fundamental operational requirement: CPV systems cannot generate power without it, as the concentrating optics require alignment to within ±0.1° of the sun’s direct beam.

Comparison with Single-Axis

Relative to Single-Axis Tracking Systems, which deliver 15–25% yield improvement over fixed-tilt, dual-axis tracking provides an incremental gain of approximately 10–15% additional annual yield — the residual benefit of correcting for the elevation-axis cosine loss that single-axis HSAT systems do not address. This incremental 10–15% yield improvement comes at a significantly higher cost premium: dual-axis tracker hardware typically costs $0.30–$0.50/W more than fixed-tilt versus the $0.04–$0.08/W premium of single-axis, plus substantially higher O&M costs from the more complex two-axis mechanical system. Independent LCOE analysesconsistently conclude that single-axis tracking achieves a lower 25-year LCOE than dual-axis tracking in virtually all commercial flat-panel PV applications — dual-axis is the superior choice only where the specific application (CPV, research) requires absolute maximum yield or where power price is exceptionally high (>$0.15–0.20/kWh) in extreme DNI zones.

ROI Considerations

Dual-axis tracking carries the highest CAPEX of any ground-mount mounting system — typically $0.30–$0.50/W above the fixed-tilt baseline for the mechanical and control system components alone, plus 40–60% higher annual O&M expenditure from two-axis drive servicing, bearing replacement cycles, and control system maintenance. This elevated cost structure means that dual-axis tracking delivers competitive ROI only in specific high-value scenarios: concentrated photovoltaic installations where module cost is very high and requires maximum utilization; off-grid or captive power projects where energy has a shadow price of $0.20–$0.50/kWh or higher; and grid-connected projects in extreme high-DNI zones where the 30–40% yield premium generates sufficient additional revenue to service the CAPEX premium within an acceptable payback window. For standard utility-scale flat-panel PV in most global markets, single-axis tracking is the superior LCOE choice and dual-axis is not economically justified.

Advantages & Limitations

Advantages

  • Maximum Irradiance Capture: By maintaining perpendicular alignment to the sun across both azimuth and elevation axes throughout every daylight hour, dual-axis systems achieve the theoretical maximum in-plane irradiance for any given location — an unmatched capability within the PV mounting system family.
  • Essential for CPV Technology: Concentrating photovoltaic systems with optical concentration ratios of 300x–1000x require ±0.1° tracking precision in two axes as a fundamental operating requirement. Dual-axis tracking is the only mounting technology compatible with high-concentration CPV, enabling the deployment of III-V multi-junction cells with efficiencies exceeding 40%.
  • Maximum Peak Output at Critical Hours: Dual-axis tracking delivers enhanced generation during early morning, late afternoon, and winter months — periods when single-axis trackers’ elevation limitation creates residual cosine losses. For grid operators requiring consistent morning and evening ramp rates, this temporal yield profile provides grid-management value beyond simple energy volume.
  • Ideal for High-Value Power Applications: In off-grid mining, remote industrial, island grid, or premium captive power applications where the value of electricity is $0.20–$0.50/kWh or above, dual-axis tracking’s maximum yield justifies its cost premium with straightforward financial arithmetic.
  • Research & Metrology Reference: Solar research facilities, calibration laboratories, and pyranometer testing sites require precisely positioned reference arrays, making dual-axis tracking the standard equipment for scientific solar measurement applications.

Limitations

  • Highest Mechanical Complexity: Two independent drive axes, multiple bearings, actuators, encoders, a PLC controller, and associated cabling create a significantly more complex system than either fixed-tilt or single-axis alternatives — increasing the probability of mechanical and electrical faults over the system life.
  • Highest O&M Cost: Two-axis drive servicing, slew bearing inspection and lubrication, actuator seal replacement, encoder calibration, and control system maintenance add $8–15/kW/year to O&M cost beyond the fixed-tilt baseline — approximately 3–5× the incremental O&M of single-axis trackers.
  • Lowest Installed Capacity per Hectare: The wide clearance spacing required between dual-axis tracker units to prevent mutual shading at low elevation angles — combined with the 360° azimuth sweep envelope — results in ground coverage ratios well below both fixed-tilt and single-axis tracker layouts, substantially reducing MW installable per unit land area.
  • Not Competitive on LCOE in Standard PV Markets: For conventional flat-panel silicon PV in utility and large C&I applications, dual-axis tracking does not deliver a lower 25-year LCOE than single-axis tracking in any commercially representative global market, limiting its application scope to the specific high-value niches described above.
  • Longer Installation Schedule: Concrete pier foundations require 14–28 days of curing before loading, two-axis mechanical assembly and calibration is more time-intensive than single-axis installation, and control system commissioning is more complex — all extending the project schedule and EPC cost per MW.

Recommended Applications

Concentrated Photovoltaic (CPV) Systems

Dual-axis tracking is the defining enabling technology for concentrated photovoltaic systems. High-concentration CPV (HCPV) uses Fresnel lenses or reflective optics to focus direct normal irradiance at ratios of 300x to 1,000x onto III-V multi-junction photovoltaic cells, which achieve module efficiencies exceeding 35–38% — nearly double the efficiency of standard silicon modules. These optical systems can only function when the concentrating element is aligned to within ±0.1° of the sun’s direct beam; any pointing error outside this tolerance results in complete loss of concentrated irradiance on the cell. Dual-axis tracking with closed-loop sun-sensor correction is the only commercially viable mechanism to maintain this precision over the full daily and seasonal solar position range. CPV systems are economically most attractive in extreme high-DNI locations (DNI > 6.0 kWh/m²/day) where the high module efficiency more than compensates for the system’s inability to capture diffuse radiation.

High-DNI Utility Projects

In premium high-DNI markets — the Arabian Peninsula, Moroccan and Egyptian desert zones, Chile’s Atacama region, and the Indian Rajasthan solar corridor — where DNI consistently exceeds 6.0–7.0 kWh/m²/day and power purchase agreement (PPA) prices or industrial tariffs are elevated, the 30–40% yield premium of dual-axis tracking over fixed-tilt can support a financially competitive project even at the higher CAPEX and O&M cost levels. Project developers in these markets occasionally specify dual-axis systems for flagship high-performance demonstration projects or land-constrained sites where maximum energy density per hectare is the binding constraint. The economics are sensitive to power price: at PPA prices above $0.12–0.15/kWh, dual-axis tracking can demonstrate LCOE parity with single-axis in the highest-DNI zones globally.

Research & Demonstration Sites

Solar research institutions, national laboratories, and university energy departments deploy dual-axis tracking for outdoor module testing, soiling assessment, bifacial characterization, and solar cell efficiency measurement. The precise two-axis positioning ensures that test results accurately reflect module performance at perpendicular irradiance incidence — the standard reference condition for all IEC module testing standards. Demonstration projects at innovation parks, industry exhibitions, and technology parks also specify dual-axis tracking for its visual engineering impact and its ability to present maximum-performance real-time generation data to stakeholders.

Dual-Axis Tracking vs Other Mounting Systems

vs Fixed-Tilt

The contrast with Fixed-Tilt Solar Mounting Systems illustrates the fundamental trade-off in the solar mounting spectrum: minimum cost versus maximum yield. Fixed-tilt offers the lowest CAPEX ($0.12–$0.15/W racking), zero moving parts, and the simplest possible O&M profile — at the cost of a static angle that cannot track daily or seasonal solar movement. Dual-axis tracking provides 30–40% more annual energy from the same installed module capacity, but at CAPEX 3–5× higher per watt of racking cost and O&M costs 4–6× greater per kW per year. For the vast majority of commercial PV applications, fixed-tilt delivers a lower 25-year LCOE — dual-axis is only the superior economic choice in high-DNI, high-power-price environments or CPV applications where module efficiency premium demands maximum utilization.

Metric Dual-Axis Tracking Fixed-Tilt
Annual Yield vs Fixed-Tilt +30–40% Baseline
Racking CAPEX (utility) $0.35–$0.55/W $0.12–$0.15/W
Annual O&M $20–$30/kW/year $8–$15/kW/year
Mechanical Complexity Highest (2-axis drives, PLC, sensors) Minimal (no moving parts)
Best Application CPV, high-DNI niche, research Cost-sensitive standard PV, diffuse climates

vs Single-Axis Tracking

Single-Axis Tracking Systems represent the commercially dominant alternative to dual-axis for utility and large C&I flat-panel PV. Single-axis HSAT delivers 15–25% yield improvement over fixed-tilt at an incremental cost of only $0.04–$0.08/W — achieving a highly competitive LCOE improvement that most utility-scale project economics can justify. Dual-axis provides an additional 10–15% yield above single-axis, but at $0.25–$0.40/W additional CAPEX and substantially higher O&M — an incremental cost-per-yield-unit that independent LCOE modelling almost uniformly rejects for standard flat-panel silicon PV. The practical conclusion for project developers is clear: single-axis tracking is the LCOE-optimized choice for mainstream utility solar; dual-axis is specified only where the CPV requirement or extreme high-DNI premium power-price economics specifically demand it.

vs Ground-Mounted Static Systems

Dual-axis tracking and static Ground-Mounted Solar Systems share the same open-land deployment environment and driven or bored-pier foundation platform, but differ fundamentally in structural concept and operational profile. Ground-mounted static systems (whether fixed-tilt or adjustable-tilt) have no moving parts once installed, are optimized for high ground coverage ratio and maximum MW per hectare, and require minimal O&M. Dual-axis trackers on the same land area install at much lower density — typically 25–40% fewer MW per hectare due to the wide clearance envelopes required — but generate proportionally more energy per installed kWp. The choice between the two is ultimately a land-cost versus energy-yield trade-off: where land is abundant and cheap, higher-density ground-mount static systems are favored; where land is constrained or where maximum generation per kWp is paramount, dual-axis tracking provides the engineering solution.

vs Ballasted Systems

Ballasted PV Mounting Systems occupy an entirely different application niche — flat commercial rooftops and surfaces where ground penetration is prohibited — making direct comparison with dual-axis ground-mount trackers largely academic. Ballasted systems are constrained to low tilt angles (5°–15°) and are mechanically incompatible with any rotation mechanism. They serve their specific purpose well within their design envelope, but cannot approach the yield performance of dual-axis tracking. Projects with available open land that can accommodate foundation works will always achieve higher energy yield and better long-term LCOE with a ground-mounted system — whether fixed-tilt, single-axis, or dual-axis — than with a ballasted rooftop configuration.

Frequently Asked Questions

What wind conditions can dual-axis trackers withstand?

In normal tracking operation, dual-axis systems operate at wind speeds up to 18–20 m/s (65–72 km/h). Above this threshold, the PLC control system drives both axes to the designated wind stow position — typically with the module frame horizontal and facing downwind — which minimizes projected wind area and overturning moment. In stow position, the structural assembly is engineered to withstand ultimate design wind speeds of 55–60 m/s (198–216 km/h) in accordance with ASCE 7-22 and IEC 62817. Stow activation is automatic via anemometer signal; manual override is available through the SCADA interface for planned severe weather events.

Are dual-axis trackers suitable for snowy regions?

Dual-axis trackers can be adapted for snowy climates through control system programming that drives the elevation axis to a steep “snow dump” angle (60°–75° from horizontal) triggered by temperature or precipitation sensors, leveraging gravity to clear module surfaces faster than natural melt. Structural design in snow-load zones must account for combined snow load at the snow-dump elevation angle, which typically requires uprated mast cross-sections and foundation sizing. However, the higher mechanical complexity and O&M requirements of dual-axis systems are generally less well-suited to remote high-snowfall sites where service access is infrequent — single-axis tracking or fixed-tilt with steep tilt angles are often preferable in harsh winter climates.

How often do motors require maintenance?

Dual-axis drive systems require more frequent maintenance than single-axis trackers due to the additional mechanical complexity of two independent drive axes. Recommended service intervals include: annual inspection of all drive motor mounting bolts, cable integrity, and functional full-range rotation test; 2–3 year slew bearing play inspection and grease replenishment; 5–8 year full bearing replacement for azimuth slew rings; and annual PLC firmware update and encoder calibration verification. Hydraulic actuator systems require fluid level checking and seal inspection annually, with hydraulic fluid replacement at 5-year intervals. Total tracker-specific O&M for dual-axis systems adds approximately $10–15/kW/year above the fixed-tilt maintenance baseline.

Is dual-axis tracking bankable for utility projects?

Dual-axis tracking has a well-established track record in CPV installations and research applications but carries lower lender familiarity than single-axis HSAT for conventional flat-panel utility PV. Most major project finance lenders and technical advisors accept dual-axis tracking for CPV projects as a standard technology, but for flat-panel PV applications, independent engineers typically require detailed LCOE justification demonstrating that the dual-axis cost premium is offset by the yield premium at the specific site irradiance and power price. Projects targeting lender financing for dual-axis flat-panel installations should expect more rigorous technology due diligence and may require enhanced O&M reserve accounts compared to equivalent single-axis tracker projects.

Explore Other Solar Mounting Solutions

Dual-axis tracking delivers the maximum possible irradiance capture for CPV and high-value niche applications, but the majority of utility, commercial, and industrial solar projects will achieve a lower LCOE with single-axis tracking or fixed-tilt systems. Explore the full PV Rack mounting portfolio to match the right system architecture to your project’s site, scale, and financial targets:

Maximize Your Solar Energy Output Today

If your project demands the absolute maximum in solar energy capture — whether for a concentrating photovoltaic installation, a high-DNI utility farm, or a precision solar research facility — our engineering team is ready to design a dual-axis tracking solution matched to your site irradiance data, structural requirements, and energy performance targets.
